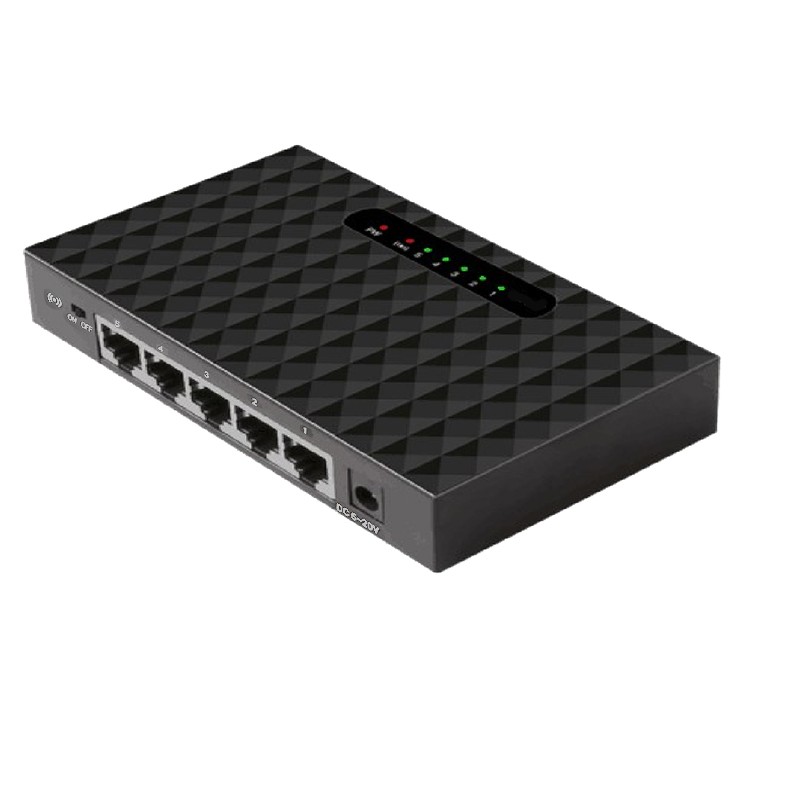

5V~20V 10/100M 5 port fast ethernet switch with Vlan function

5V~20V 10/100M 5 port fast ethernet switch with Vlan function

* Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az standards;
* Support 5 x10/100Mbps Auto-negotiation RJ45 ports, all port auto MDI/MDIX;
* Supports lEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode;
* Support VLAN isolation mode operation;
* Support low-power energy-saving (EEE), broadcast storm control;
* LED indicators for monitoring port Link/Activity;
* Adopts external power supply and exquisite plastic shell design , suitable for desktop install and wall mounted use.

Model	YJ-E041-P
Interface	5V~20V 10/100M unmanaged gigabit network lan switch 5 ports
Housing material	plastic
Color available	white & black
Network media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
LED Indicator	Per device - Power (Green) VLAN (Green) Per port - Link/Activity(Green)
Power input	5~20V
Power supply	DC 5V 0.55A
Switch dimension	1247123mm
Standards and Protocols	IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az
Transfer method	Store-and-Forward
Power Consumption	1.5W (max)
Operation mode	Vlan off: All ports can communicate normally Vlan on: Ports 1 ~ 7 of the switch can only communicate with the uplink port, and Ports 1 ~ 7 cannot communicate with each other.
Install method	desktop or wall mounted
Functions	* Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az standards; * Support 5 x10/100Mbps Auto-negotiation RJ45 ports,all port auto MDI/MDIX; * Supports lEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode; * Support VLAN isolation mode operation; * Support low-power energy-saving (EEE), broadcast storm control; * LED indicators for monitoring port Link/Activity; * Adopts external power supply and exquisite plastic shell design , suitable for desktop install and wall mounted use.
Environment	Operating Temperature: 0 ℃-40 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -40℃-70℃
	Relative Humidity: 5%-90%(non-condensing)
