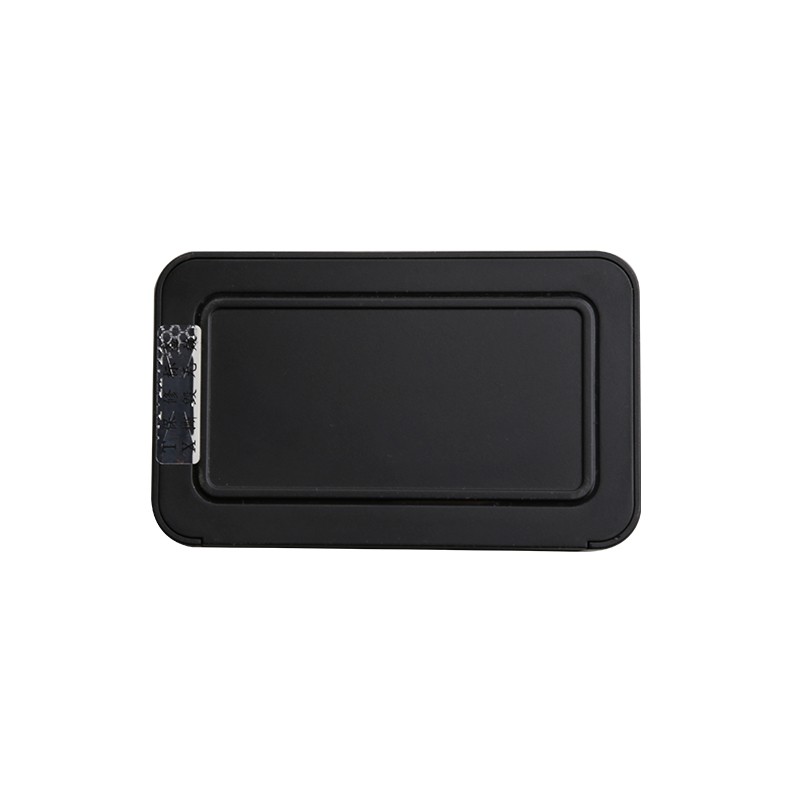

Fast ethernet mini 5 ports desktop network switch with plastic shell

Fast ethernet mini 5 ports desktop network switch with plastic shell

* Robust Network Connectivity: Easily expand your network and take advantage of the dependability of a wired network connection.

* Plug and Play: This switch is a true plug and play device, requiring no drivers or special configuration of any kind.

* 5 Port fast ethernet: 5 10/100 Mbps Fast Ethernet auto-negotiation RJ45 ports greatly expand network capacity

* LED Indicators: The LED indicators allow you to see your network status at a glance, with simple diagnostics, such as power status and LAN activity/link status for each individual port.

* Supports Auto Negotiation and Auto MDI/MDX: This switch supports Auto Negotiation, allowing it to set the optimal duplex mode and speed to communicate with each connected device.

Model	YJ-E070
Interface	5 x 10/100Mbps Auto-Negotiation ports
Housing material	plastic
Color available	white & black
Network media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
LED Indicator	Per device - Power Per port - Link/Activity
Power supply	DC 5V 0.55A
Switch dimension	88.252.721.8mm
Standards and Protocols	IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3x、IEEE802.3az
Transfer method	Store-and-Forward
MAC Address Table	1K
Switch capacity	1Gbps
Packet Forwarding Rate	744Kpps
Power Consumption	Maximum: 1.3W
Install method	desktop
Functions	* Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3x、 IEEE802.3az Ethernet standards; * Support 5 x10/100Mbps Auto-negotiation RJ45 ports,support auto MDI/MDIX; * Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode; * Supports IEEE802.3az energy efficient ethernet (EEE) technology; * 1K entry MAC address table of the switch with auto-learning and auto-aging; * LED indicators for monitoring Port Link / Activity; * External power supply, exquisite design, suitable for desktop install and use.
Environment	Operating Temperature: 0 ℃-40 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -40℃-70℃
	Relative Humidity: 5%-90%(non-condensing)
