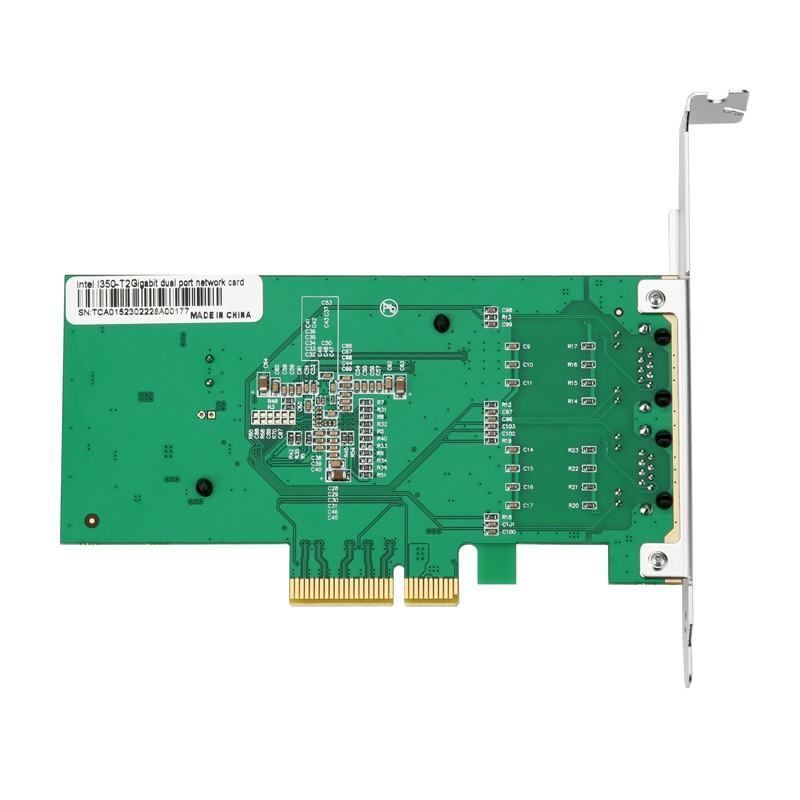

OEM 10/100/1000Mbps Intel I350-T2 PCI Express 4x 2 Ports Ethernet Cards

OEM 10/100/1000Mbps Intel I350-T2 PCI Express 4x 2 Ports Ethernet Cards

* Equipped with original Intel I350AM2 controller chip which supports Auto-negotiation, PXE, Iscsi, RSS, Jumbo Frame and NVGRE make the servers more stable.
* Compatible with Windows Server 2003/2008/2012, Windows7/8/Vista/XP, Linux, VMware ESX/ESXi*.
* Dual copper RJ45 ports let you connect to Category-5 and up to 100m for meeting the demands of data center environments. PCI Express v2.0(5.0GT/s) x4 lane.

Model	YJ-A032E
Chipset	Intel I350AM2
Interface	PCI Express x4
Port	2 x RJ45
Transmission speed	10/100/1000Mbps
LED Indicator	2 – 100 Mbps Link/Activity (Green) 2 – 1Gbps Link/Activity (Orange)
Standard	IEEE802.3, IEEE802.u, IEEE802.3ab, IEEE802.3q, IEEE802.3x
Functions	* Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options * Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption * Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports * Scalable iSCSI performance delivering cost-effective SAN connectivity * High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s * Reliable and proven Gigabit Ethernet technology from Intel Corporation * Intel® Ethernet Controller I350 * With PCI Express* V2.1 (5 GT/s) Support * Low-Profile and Standard height full * Automatic cross-over detection function (MDI/MDI-X) * IEEE 1588 protocol and 802.1AS implementation
Support OS	DOS, Novell ODI Windows XP 32-bit(64-bit),Windows Server 2003 32-bit(64-bit),Windows Vista 32-bit(64-bit),Windows 7 32-bit(64-bit) Windows 8 32-bit(64-bit),Windows 8.1 32-bit(64-bit) Windows Server 2008 32-bit(64-bit),Windows Server 2008 R2 32-bit(64-bit) Windows Server 2012,Windows Server 2012 R2 Linux 2.4 series kernel,2.6.x,3.x FreeBSD 7.x or most of FreeBSD, UnixWare / Open Unix 8 Sun Solaris x86, VMware, Xen4
Environment	Operating Temperature: 0 ℃-55 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -0℃-80℃
	Relative Humidity: 5%-90%(non-condensing)
