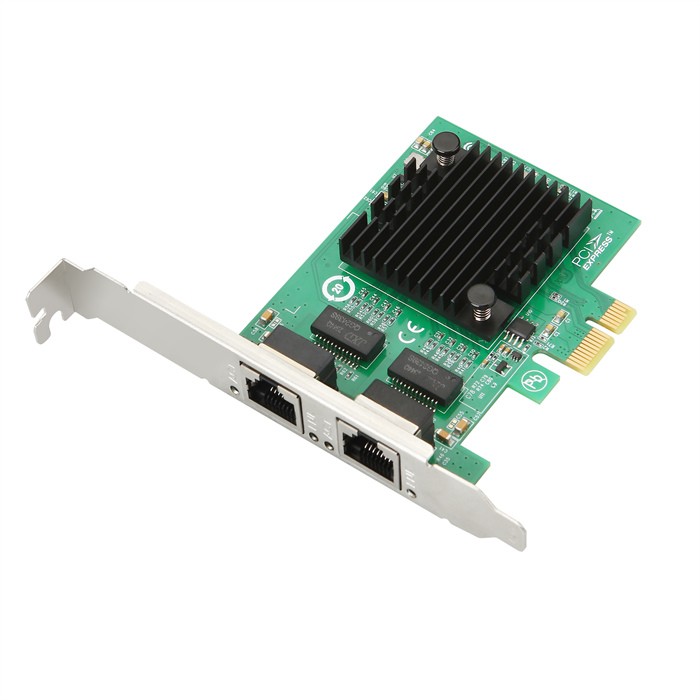

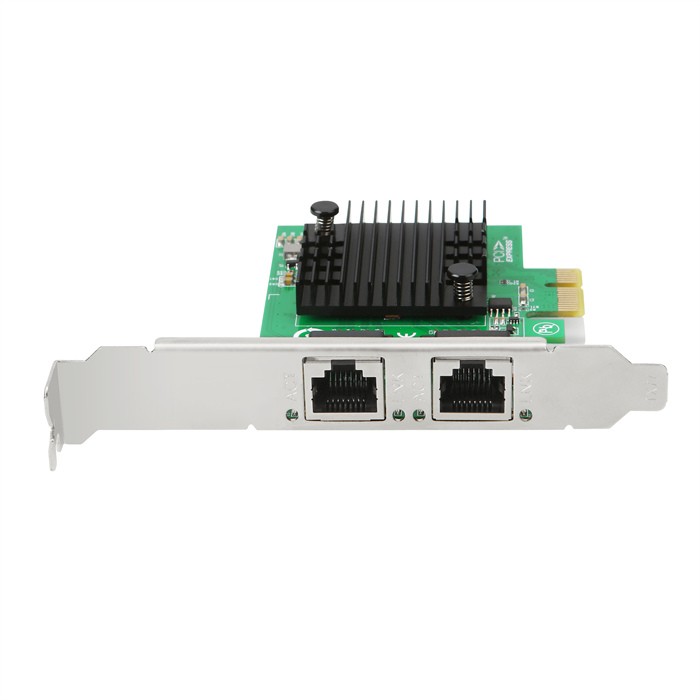

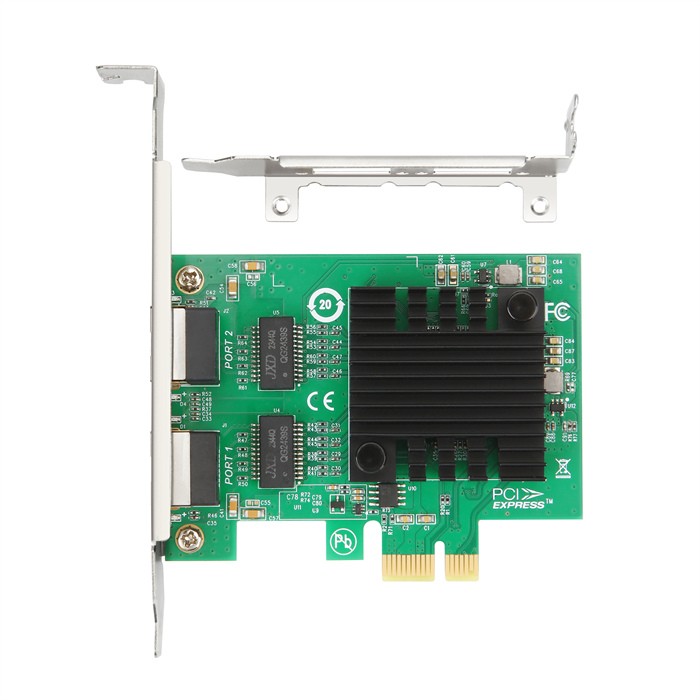

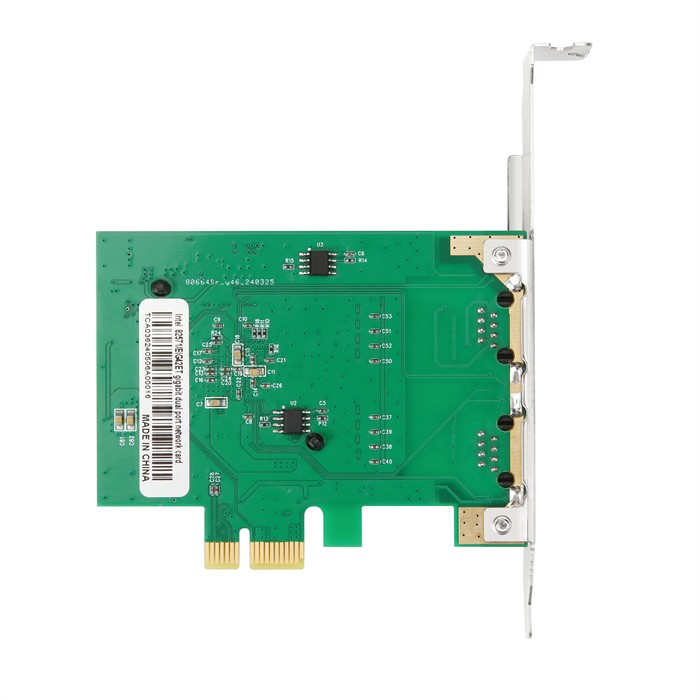

PCIe X1 1GbE Dual RJ45 Port Ethernet Network Card Intel 82571 chipset

PCIe X1 1GbE Dual RJ45 Port Ethernet Network Card Intel 82571 chipset

* System Interface Type: PCIe v1.0a (2.5 GT/s).
* Interfaces Supported: 1000Base-T; Cable type: CAT5/5e or better.
* Upgrade Your Network to Gigabit: 1.25Gb/s PCI-E Network Adapter with RJ45 ports easily upgrades your network to 1000Mbps networking using standard copper network Cables. NOT support hot swaping.
* High Quality Gigabit Ethernet Controller: Equipped with original Intel 82571 controller chip which supports Jumbo Frames, maintaining a stable connection in a wide range of environments.

Model	YJ-A125
Chipset	Intel 82571
Interface	PCI Express x1
Port	2 x RJ45
Transmission speed	10/100/1000Mbps
LED Indicator	4* LED 10/100/1000Mbps (Link/Act)
Standard	IEEE802.3, IEEE802.u, IEEE802.3ab, IEEE802.3q, IEEE802.3x
Functions	* Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux * Enables two Gigabit connections in a single adapter, delivering increased bandwidth for slot-constrained servers and providing high performance, reliability, and low power use in a single, integrated, dual port PCI Express Gigabit Ethernet controller chip * Allows dual-port operation in almost any PCI Express server slot, PCI Express slots and allows each port to operate without interfering with the other
Support OS	Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit) Microsoft Windows 2000 Red Hat Linux 2.4x or later (32- and 64-bit) FreeBSD 4.x or later Novell Netware 5.x, 6.x Sun Solaris x86, OS 8 and later SCO Open Server 5, OpenUNIX 8
Environment	Operating Temperature: 0 ℃-55 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -0℃-80℃
	Relative Humidity: 5%-90%(non-condensing)
