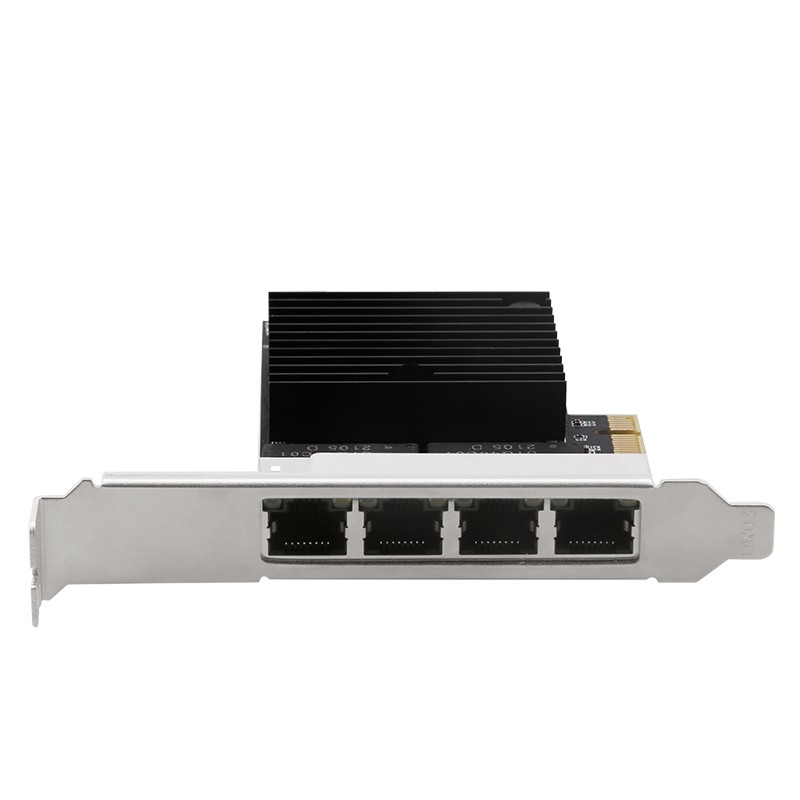

1G 4 Port PCIe 1x Server Lan Card Network Adapter With Intel 82571 Controller

1G 4 Port PCIe 1x Server Lan Card Network Adapter With Intel 82571 Controller

* Four Gigabit electrical ports, providing high-speed and stable transmission.
* Adopt 8-core RJ45 port, four standard Gigabit electrical ports, data transmission rate up to 10/100/1000Mbps.
* Adopt 82571 chip to make the speed faster and more stable.
* Adopt heat sink to reduce the temperature, to ensure the stability of the network card work and longer service life.
* PCIE x1 thickened electric gold hardness, more wear-resistant than ordinary electric gold, better contact, support 10, 000 times plugging and unplugging.

Model	YJ-A198
Chipset	Intel 82571
Interface	PCI Express x1
Port	4 x RJ45
Transmission speed	10/100/1000Mbps
LED Indicator	8 LED 10/100/1000Mb (Link/Act)
Standard	IEEE802.3, IEEE802.u, IEEE802.3ab, IEEE802.3q, IEEE802.3x
Functions	* Four Gigabit electrical ports, providing high-speed and stable transmission. * Adopt 8-core RJ45 port, four standard Gigabit electrical ports, data transmission rate up to 10/100/1000Mbps. * Adopt 82571 chip to make the speed faster and more stable. * Adopt heat sink to reduce the temperature, to ensure the stability of the network card work and longer service life. * PCIE x1 thickened electric gold hardness, more wear-resistant than ordinary electric gold, better contact, support 10, 000 times plugging and unplugging.
Support OS	Windows 7, 8, xp, 10, 11; Server 2008 R2,2012, 2012 R2, 2016; Linux 2.4x to 4.x
Environment	Operating Temperature: 0 ℃-55 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -0℃-80℃
	Relative Humidity: 5%-90%(non-condensing)
